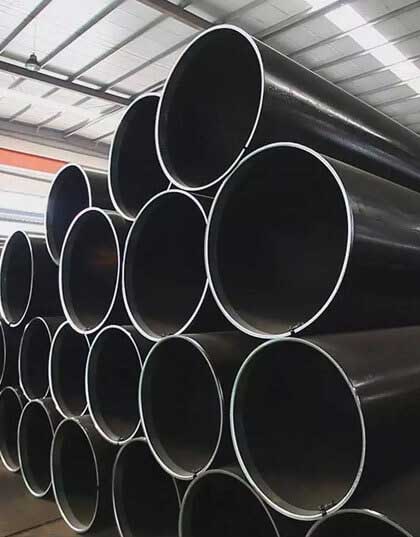

Greenline Pipe and Fittings is one of the finest stockiest, manufacturer and exporters which provides a broad range of API 5L Gr B Pipe. These pipes are produced using premium quality raw materials and advanced technology to maintain their international standard quality. These duplex pipes are provided to our customers is of premium quality. There is a wide range of duplex pipes available in the market to be used in various industrial products.
API 5L Gr B Pipe is available in various shapes, sizes, grades and specifications, finishes, dimensions, and types. They are available in different types like seamless, ERW, fabricated and welded. They can also be differentiated based on their thickness and can further be optimized according to the needs and demands of our customers.
They are also differentiated based on their forms like some are round, hydraulic, rectangular while others are "U" bend or hollow, straight, etc. They also have a different finish like polished, annealed and Pickled, Bright and Annealed and, MF. They have a plain end, beveled end, threaded pipe, and tube.
This API 5L Gr B Pipe is used in various industries like the power industry, agricultural irrigation, chemical industry, petrochemical industry, etc. Apart from this, duplex pipes are also used in shipbuilding. They are also used in paper and pulp industries, the oil industry, gas industry, fertilizer industry, pharmaceutical industries, etc. these types of pipes are also highly demanded by various engineering and construction industries.
API 5L Gr B Pipe are good at having many properties like they are compatible in less temperature environment as in winters, deep seawater offshore missions, and incredible erosion protection. They are also widely in demand because of their excellent features like corrosion resistance, durability, hardness, optimum finish, dimensional accuracy. They can also withstand heavy loads; have high tensile strength, flexibility, pitting resistance crevice corrosion resistance, and stress corrosion cracking.
To make sure that the API 5L Gr B Pipe which are going to be delivered to our customers are of premium quality. These duplex pipes undergo various tests like the flattering test, chemical test, micro/macro test, etc.
Sizes (Seamless) : 1/2" NB – 60" NB
Sizes (ERW) : 1/2" NB – 24" NB
Dimension Standard : ANSI B36.19M, ANSI B36.10
Sizes (SAW/LSAW): 16" NB – 100" NB
Thickness : 0.3mm – 50 mm.
Wall Thickness available : Schedule 20 – Schedule XXS (heavier on request) up to 250 mm thk
Type : LSAW / DSAW / SAW / HSAW / ERW / HFW / SSAW Pipes
| API 5l Grade B Pipe Sizes | Nominal Pipe Size 1/2" to 48 " O.D. Wall Thickness – Schedule 10 through 160, STD, XS, XXS. |
|---|---|
| API 5l Grade B Seamless Pipe | B (L245) – X42 (L290) – X52N (L360) – X60 (L415) – X65 (L450) DIMENSION: FROM 1/4” UP TO 24” |
| API 5l Grade B Welded Pipe | B (L245) – X42 (L290) – X52N (L360) – X60 (L415) – X65 (L450) – X70 (L485) – X80 (L555) DIMENSION: FROM 1/2” UP TO 60” |
| Weld Alternatives: | ERW, HF, DSAW/SAWL, SMLS, HSAW |
| API 5l Grade B Pipe Product Specification Level (PSL) | API 5L Grade B X42 PSL 2 API 5L Grade B X42 PSL 1 |
| OD Size Range: |
ERW: 0.375" through 30" SMLS: 0.840" through 26" |
| Wall Thickness API 5l Grade B Pipe : | ERW: 0.120" through 1.000" HF: 0.120" through 1.000" DSAW/SAWL: 0.250" through 6.000" SMLS: 0.250" through 2.500" HSAW: 0.250" through 1.000" |
| Lengths: | Single Random Double Random Custom (up to 300′) |
| PSL1 | PSL2 | |||||||
| Grade | C (Max.) | Mn(Max.) | P(Max.) | S(Max.) | C (Max.) | Mn(Max.) | P(Max.) | S(Max.) |
| B | 0.26 | 1.20 | 0.03 | 0.03 | 0.22 | 1.30 | 0.025 | 0.015 |
| Mechanical Properties PSL 1 | |||||
| Grade | Yield Strength(Min.) | Tensile Strength(Min.) | Elongation | ||
| Ksi | MPa | Ksi | MPa | E=1944 A 0.2 /U 0.9 | |
| B | 35 | 241 | 60 | 414 | |
| Mechanical Properties | |||||||||
| Grade | Yield Strength | Tensile Strength | Elongation | ||||||
| Min | Max | Min | Max | E=1944 A 0.2 / U 0.9 | |||||
| Ksi | MPa | Ksi | MPa | Ksi | MPa | Ksi | MPa | ||
| B | 35 | 241 | 65 | 448 | 60 | 414 | 110 | 758 | |
